The standardized e-mesh kit.

A regulated mod, a mesh RDA and a one-piece glass chamber with the mouthpiece built in. Every kit is the same hardware, so settings and notes carry from one owner to the next.

e-mesh: heated by a flat mesh screen · mod: the battery box · RDA: the deck that holds the screen

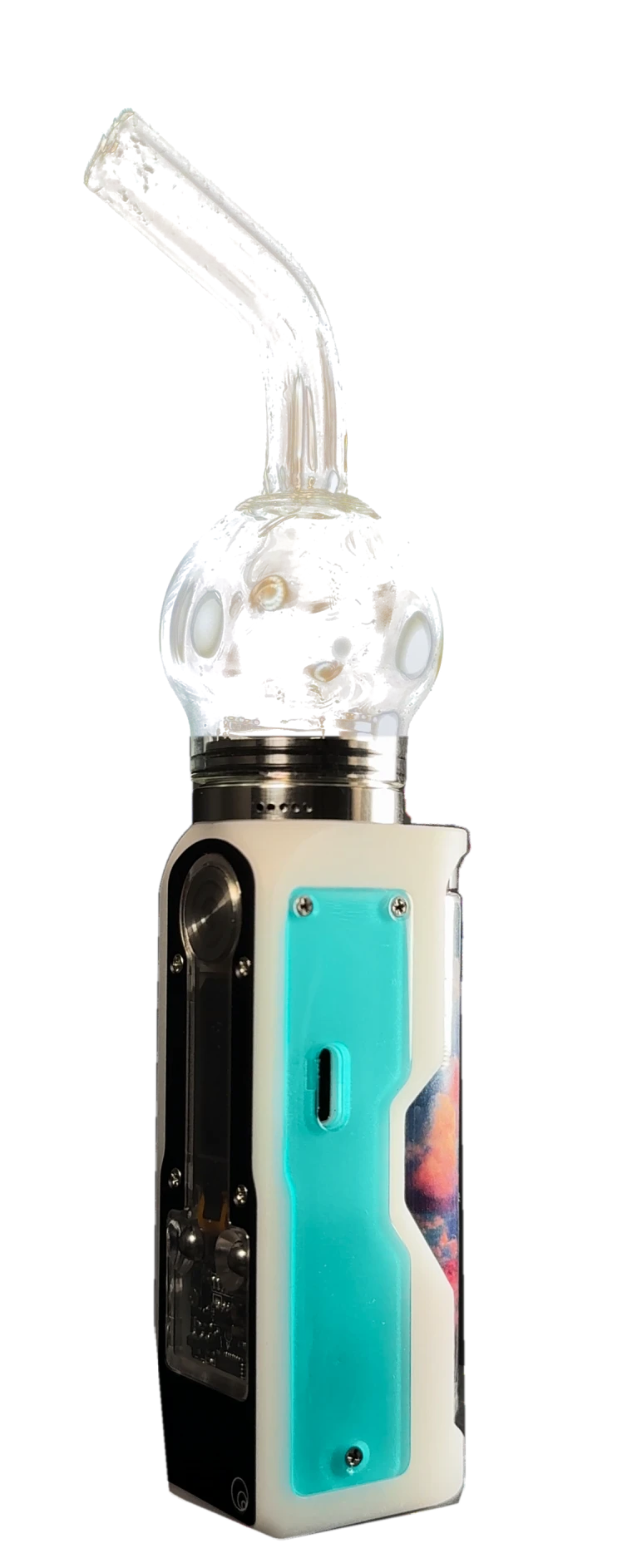

Lucidus with Bulb glass — Shown with Bulb glass

See what is in the kit$159.99 Start with what it is

RDA: Ø26 mm
Mesh: 200-mesh SS316L
Mod: 68.6 g

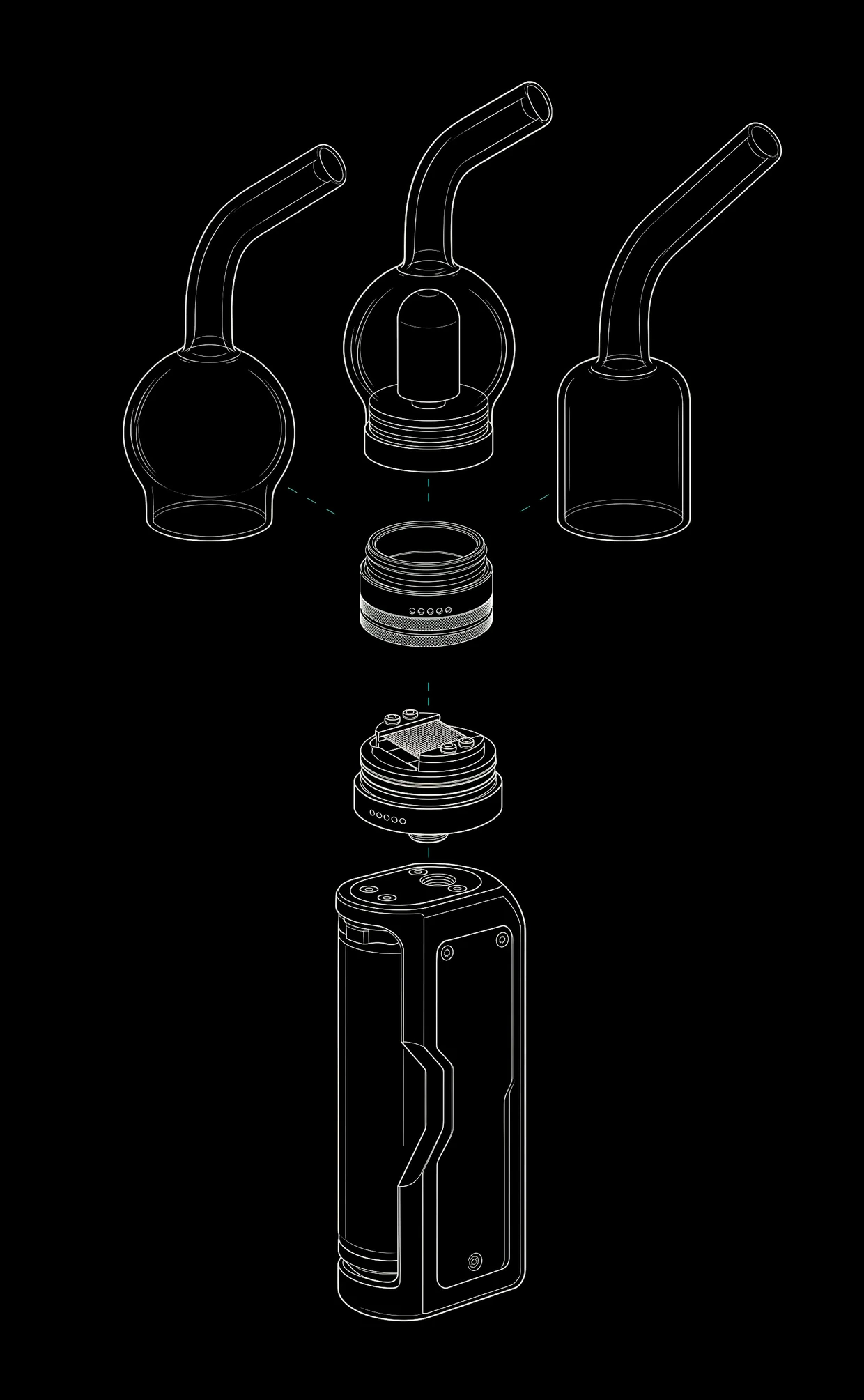

Four parts. One stack.

A regulated mod, a mesh RDA, a one-piece glass chamber and a battery. Each part is named on the photo.

Lucidus with the Cylinder glass fitted, side view

Four parts

Kit 12Battery
Sits inside the mod. Charges through the mod's USB-C port. Cable included.

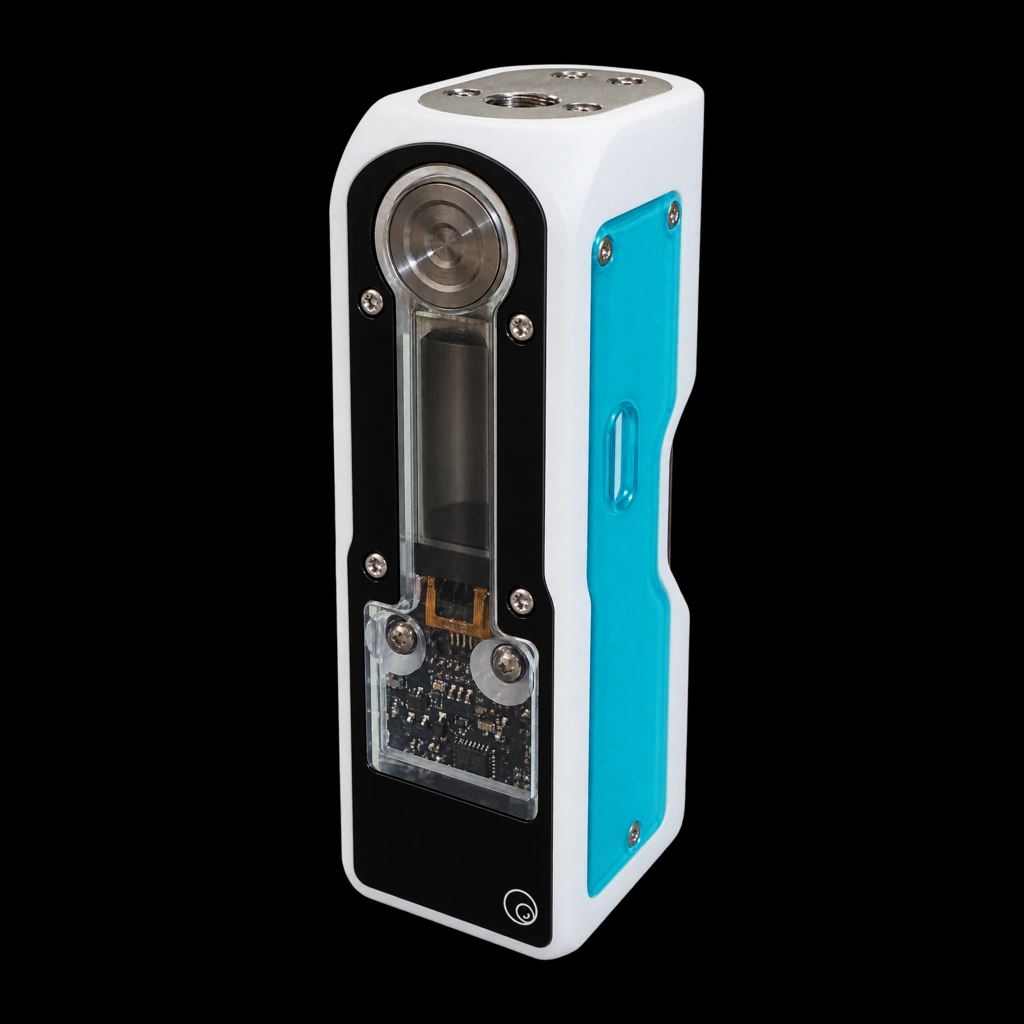

Kit 01Mod
Holds the controls and powers the RDA.

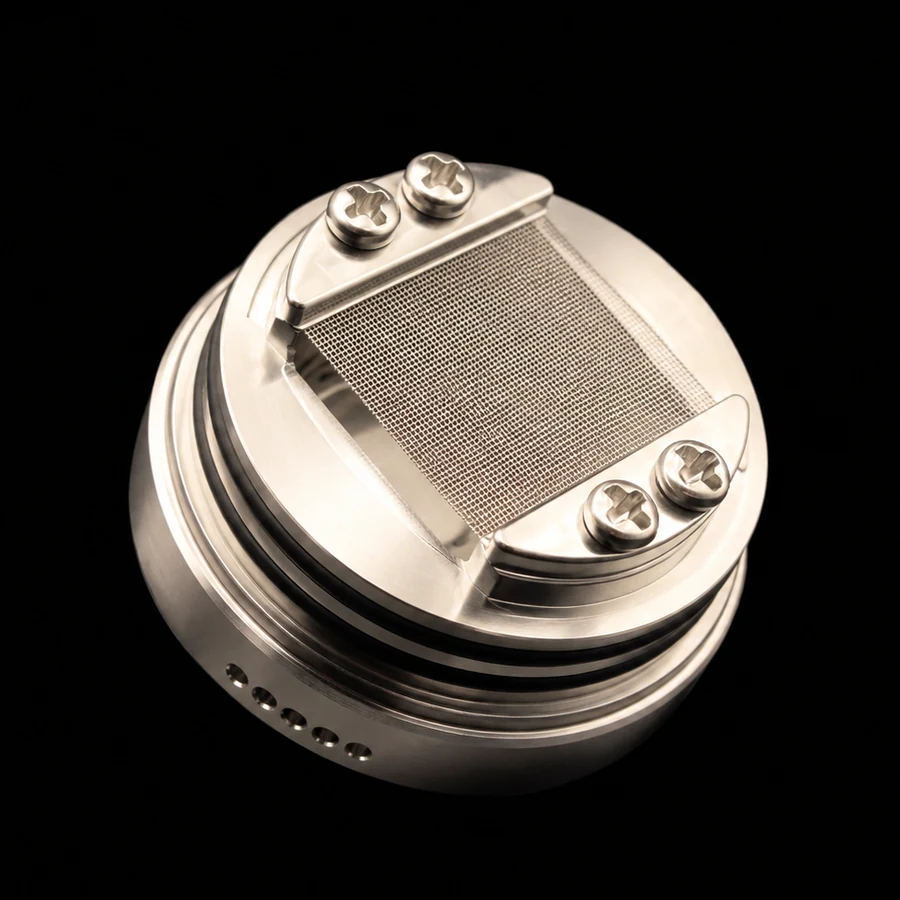

Kit 02 · 07RDA and mesh screen
Holds the screen. Air enters through holes at its base.
Kit 03 · 04 · 05Glass
One piece: chamber and mouthpiece. Sits on the RDA.

New to e-mesh?

1The mod sends battery power to the RDA.
2The flat mesh screen on the RDA heats when powered.
3Air enters at the base of the RDA and crosses the hot screen.
4The vapor rises through the glass to the mouthpiece.

Everything in one box.

US kits have 13 parts. International kits have 12, because the battery ships only inside the US.

$159.99

US kits include one battery. Shipping rules for loose lithium cells mean international kits ship without one.

Sourced one by oneDifferent makers · different specs · separate orders

One matched kitSelected to fit together · counted · one box

Building your own rig means separate orders and parts that may not fit. In this kit they are selected to fit together, counted and matched in one place.

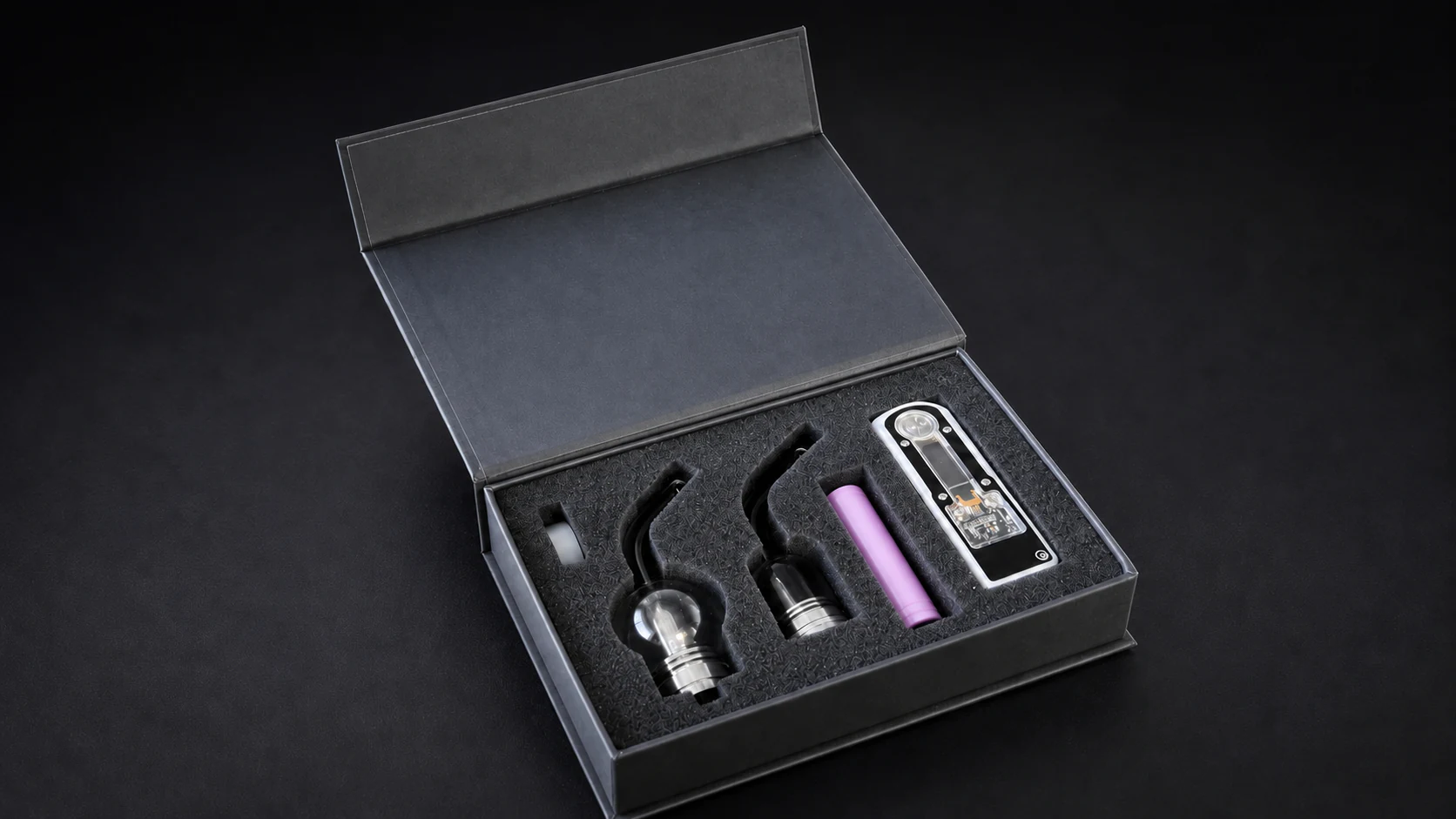

Open Lucidus kit showing the mod and included components — Presentation image · final packing arrangement may vary

The countTap any part to enlarge · Numbers match the callouts on this page

Mod · powered bodyQty 1

RDA · mesh deckQty 1

Cylinder glassQty 1

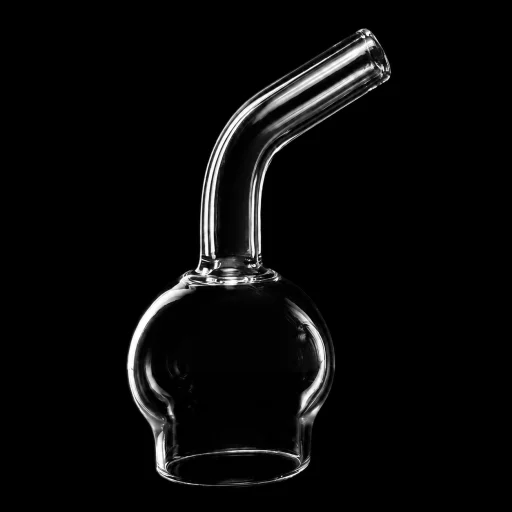

Bulb glassQty 1

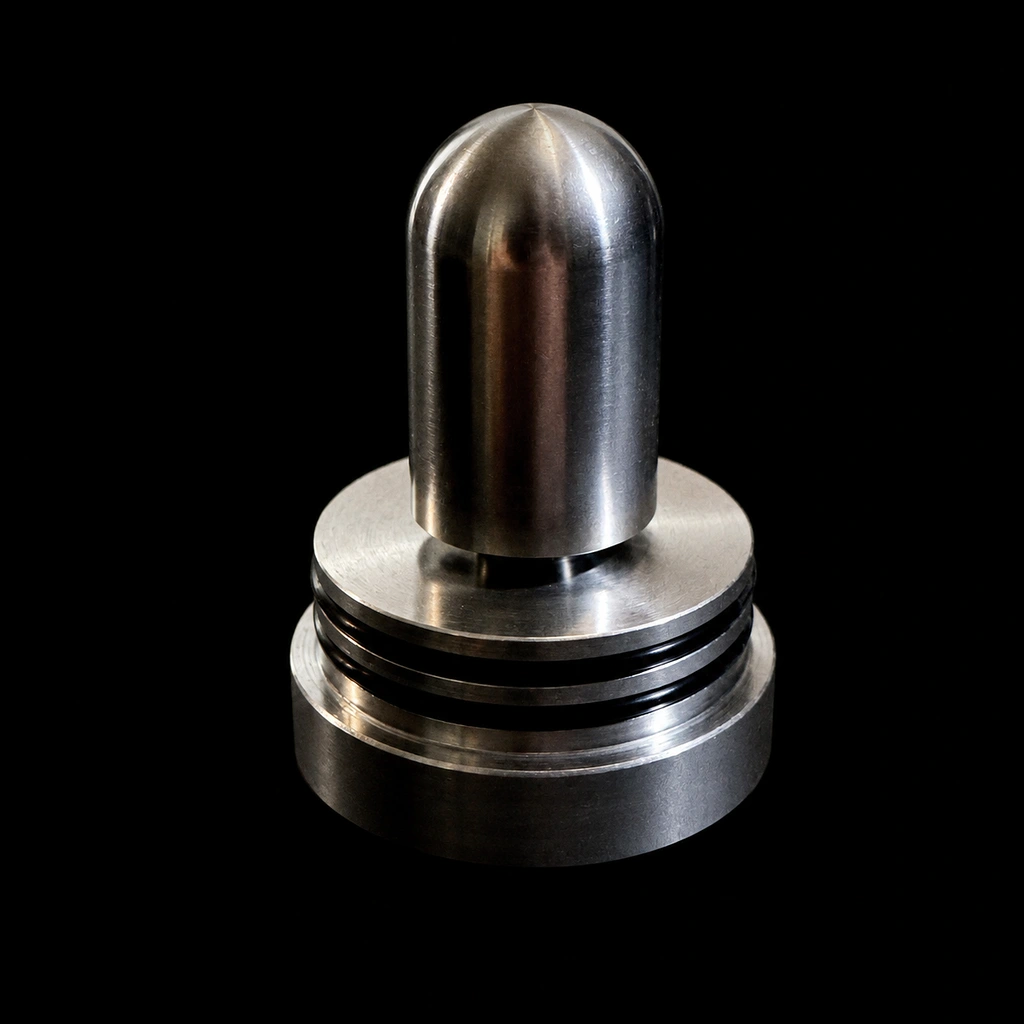

PercolatorQty 1

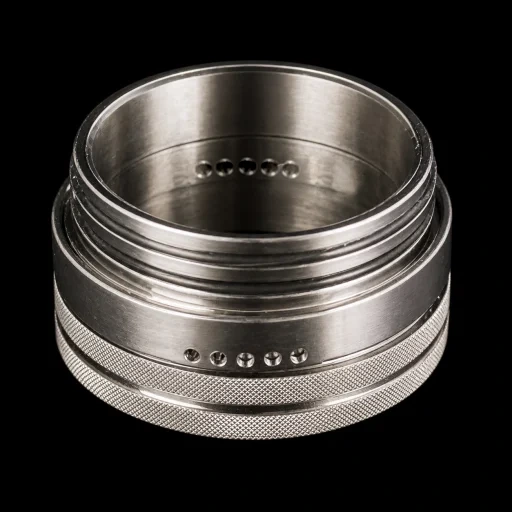

Top Airflow VentQty 1

Screens · two widthsQty 20

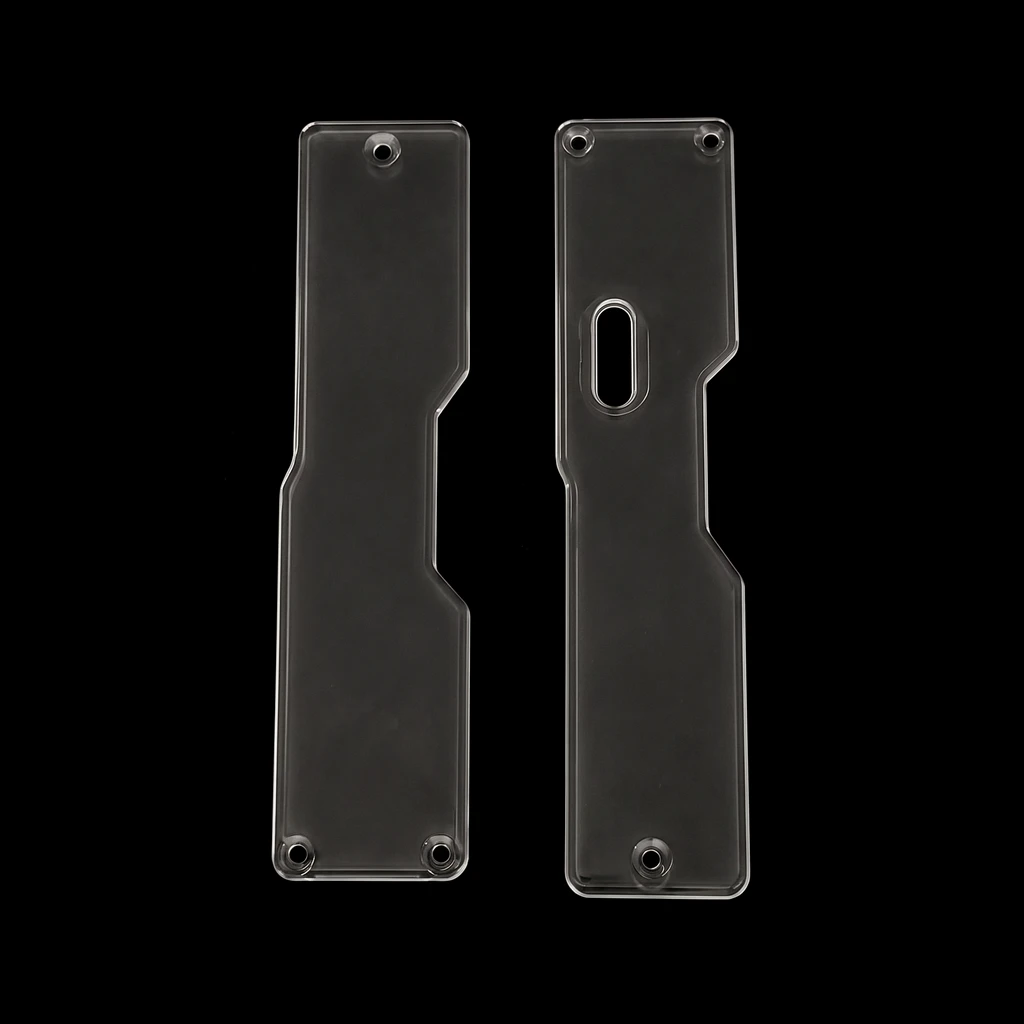

Clear side panelsQty 1 set

Decals + stickersQty 1 set

Loading toolQty 1

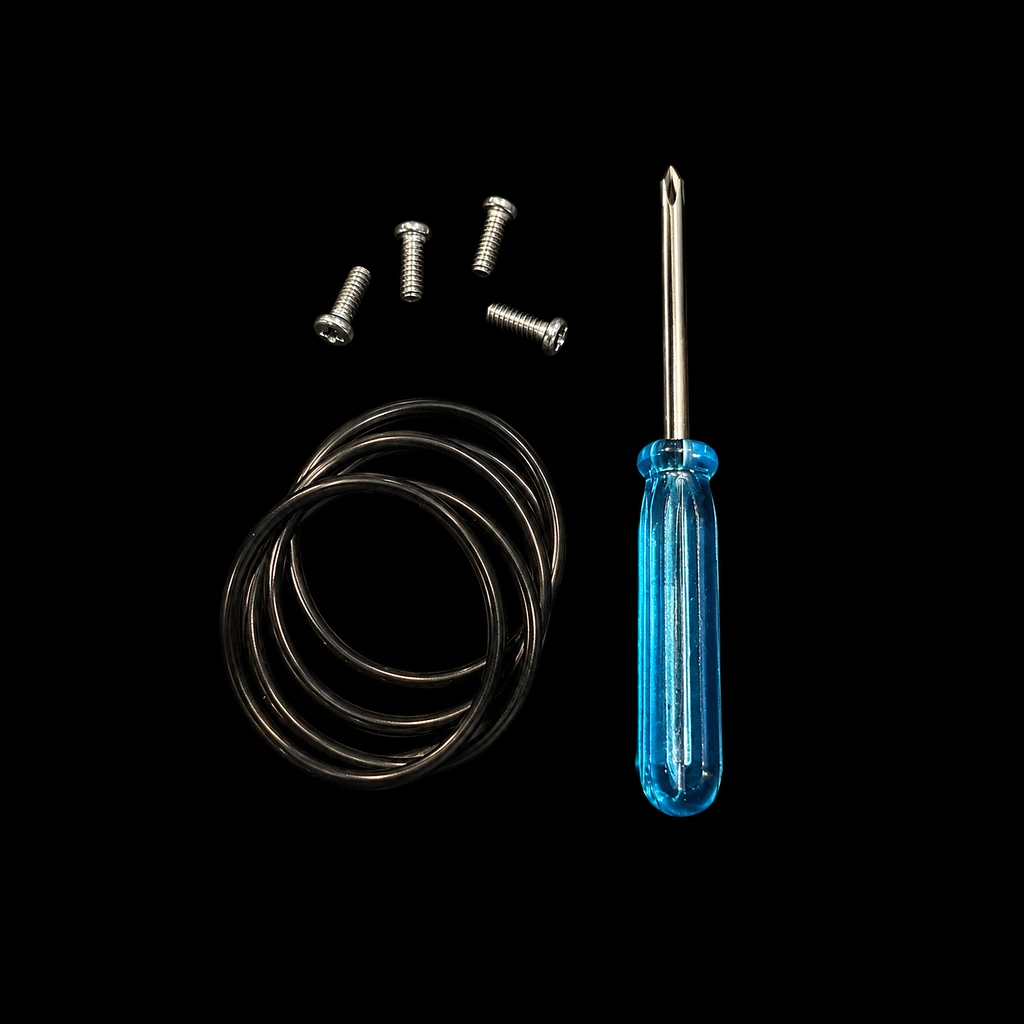

Screws, gaskets, driverQty 1 set

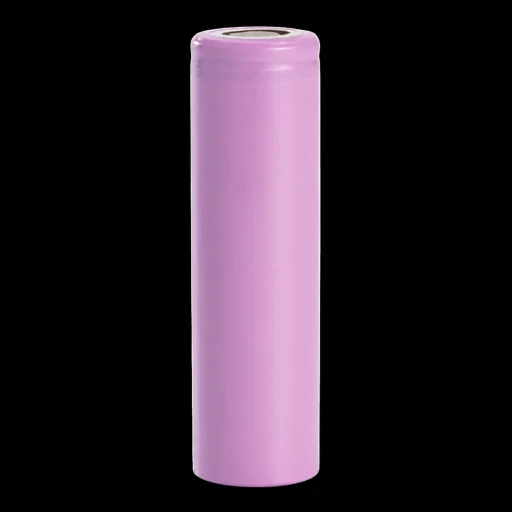

EVE 30P batteryQty 1

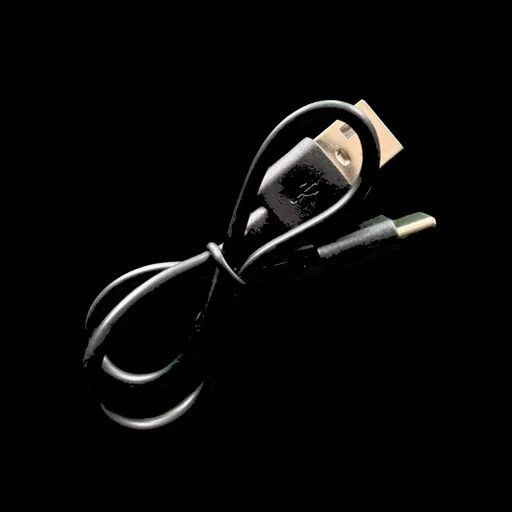

USB-C cableQty 1

13partsUS kit

06 adds top airflow. 10 guides material onto the screen.

Built to fit together.

Close-ups of the parts that matter. Numbers match the kit list.

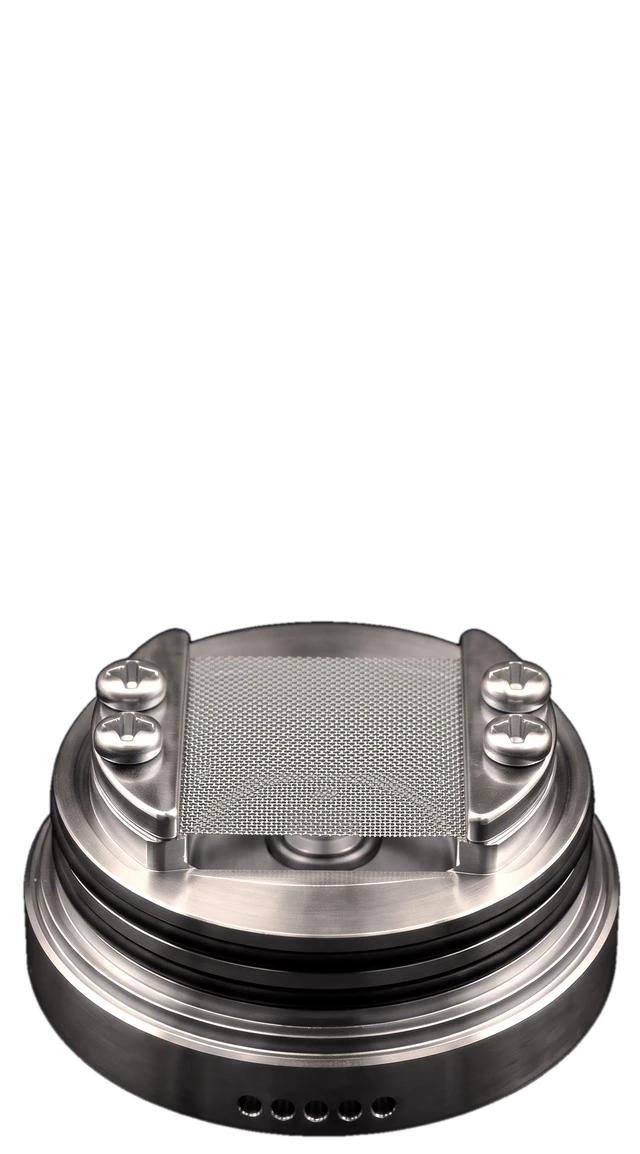

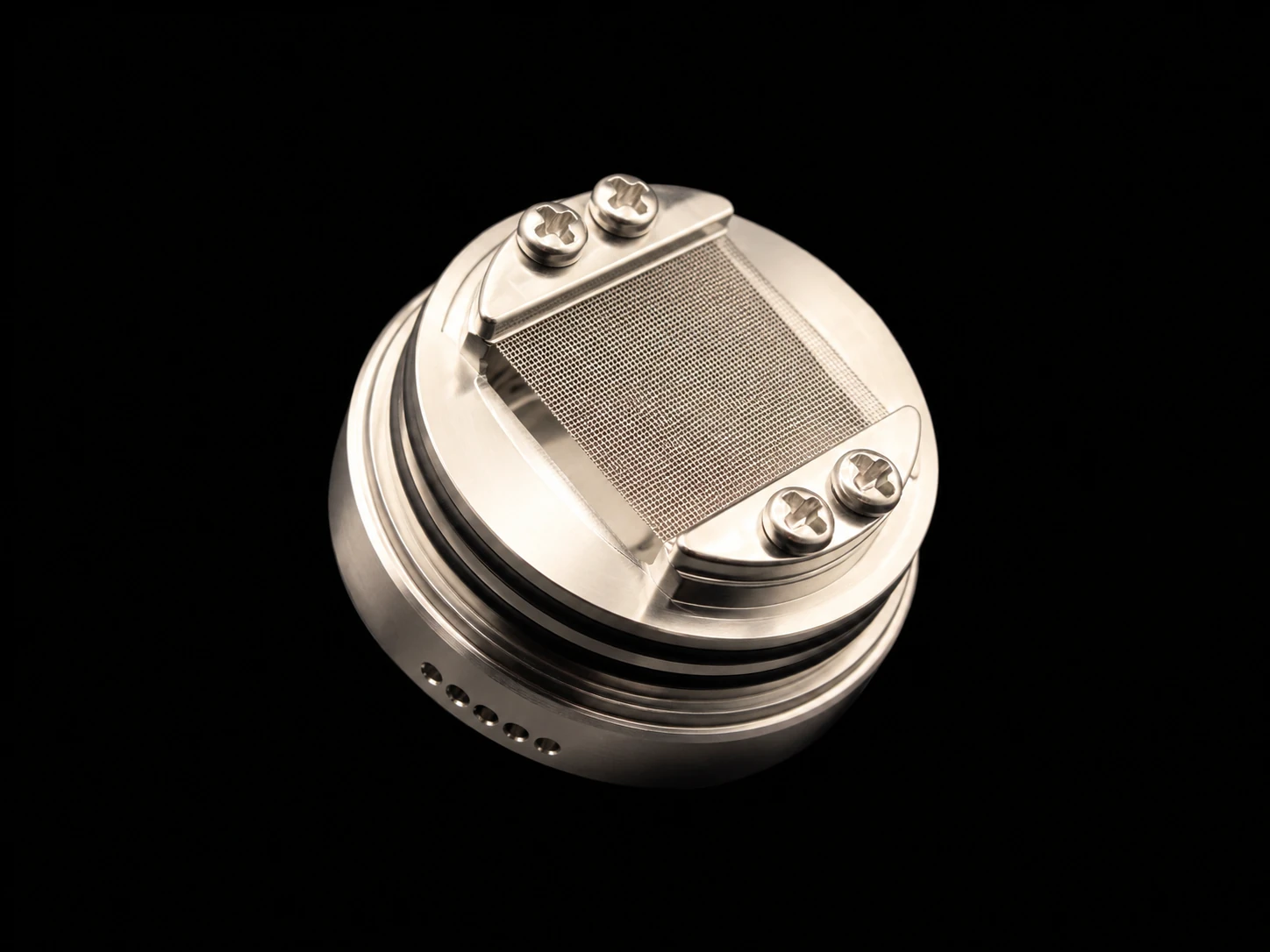

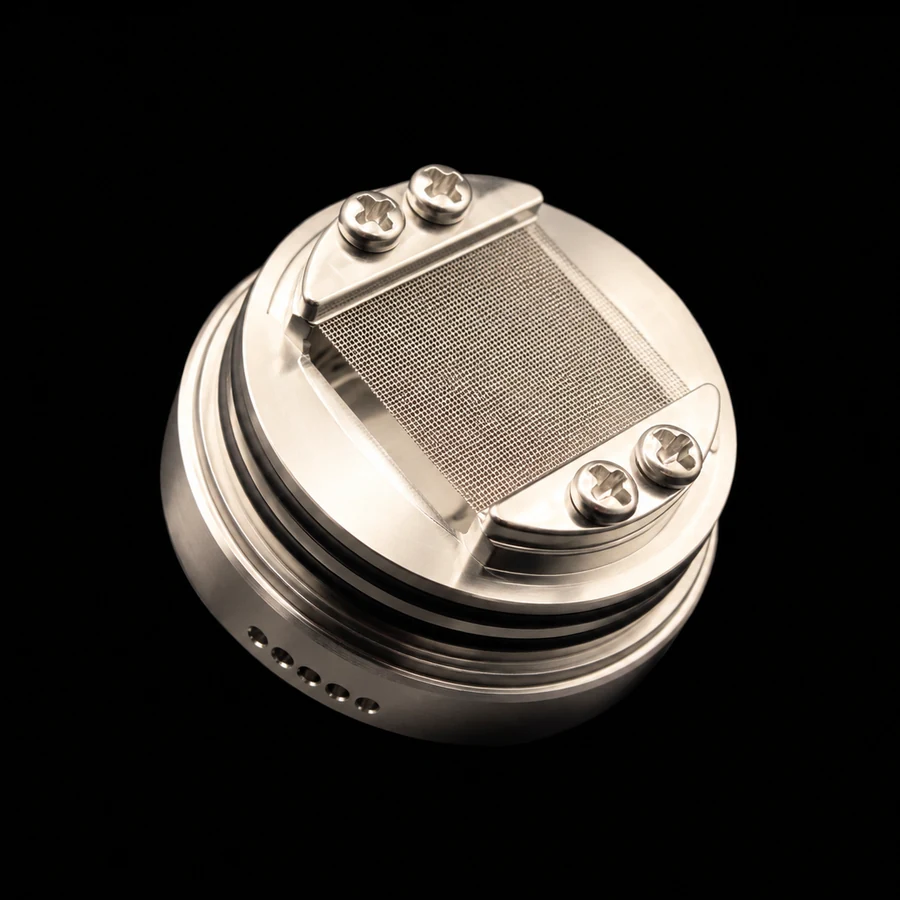

Close-up of the RDA with a flat mesh screen clamped across it — FIG. 02Mesh assembly0.05 mm wire · laser-cut edges

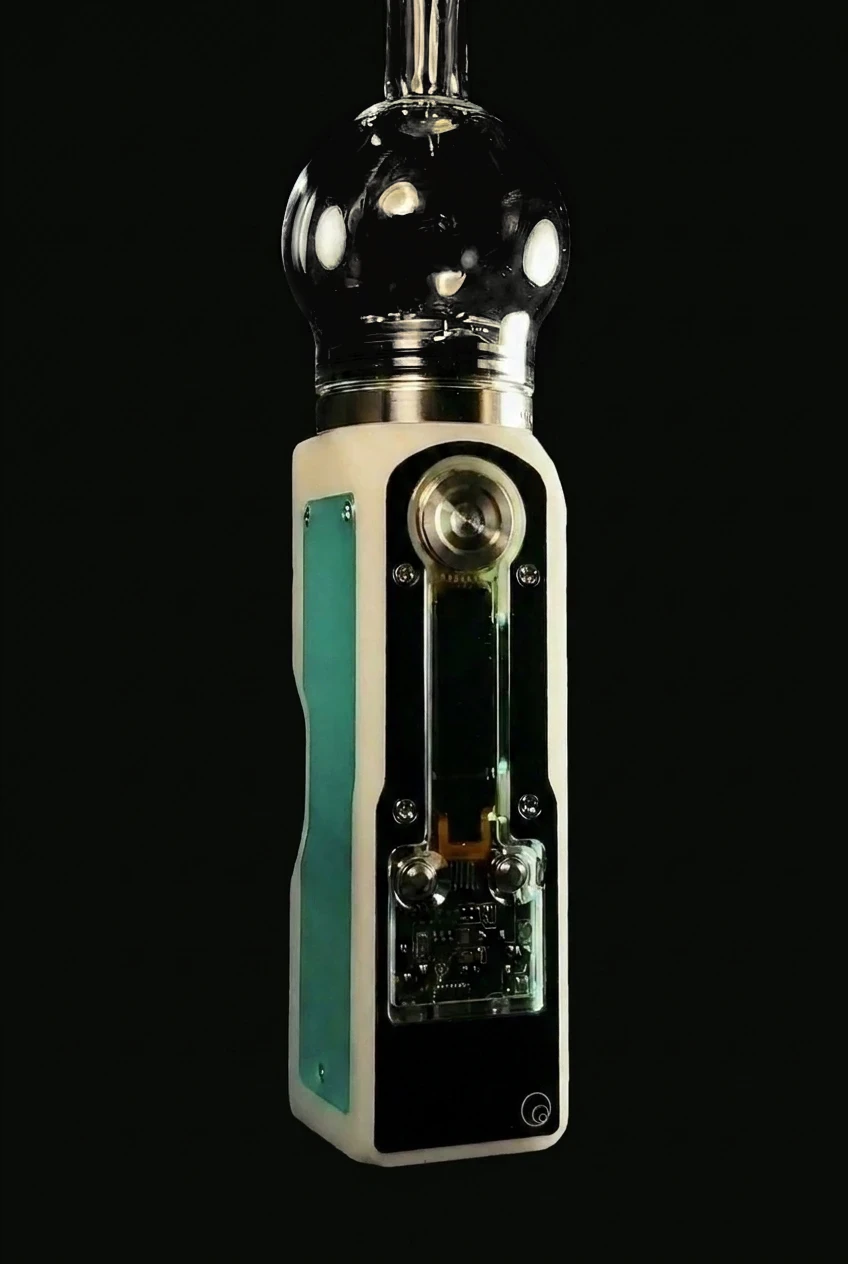

The mod, with its circuit board visible through a clear window — FIG. 03Powered body26.6 mm deep · USB-C

20Screens in the kitSS316L · 200 mesh

Ø26mmRDA diameter304 stainless steel

68.6gMod weightThe mod alone

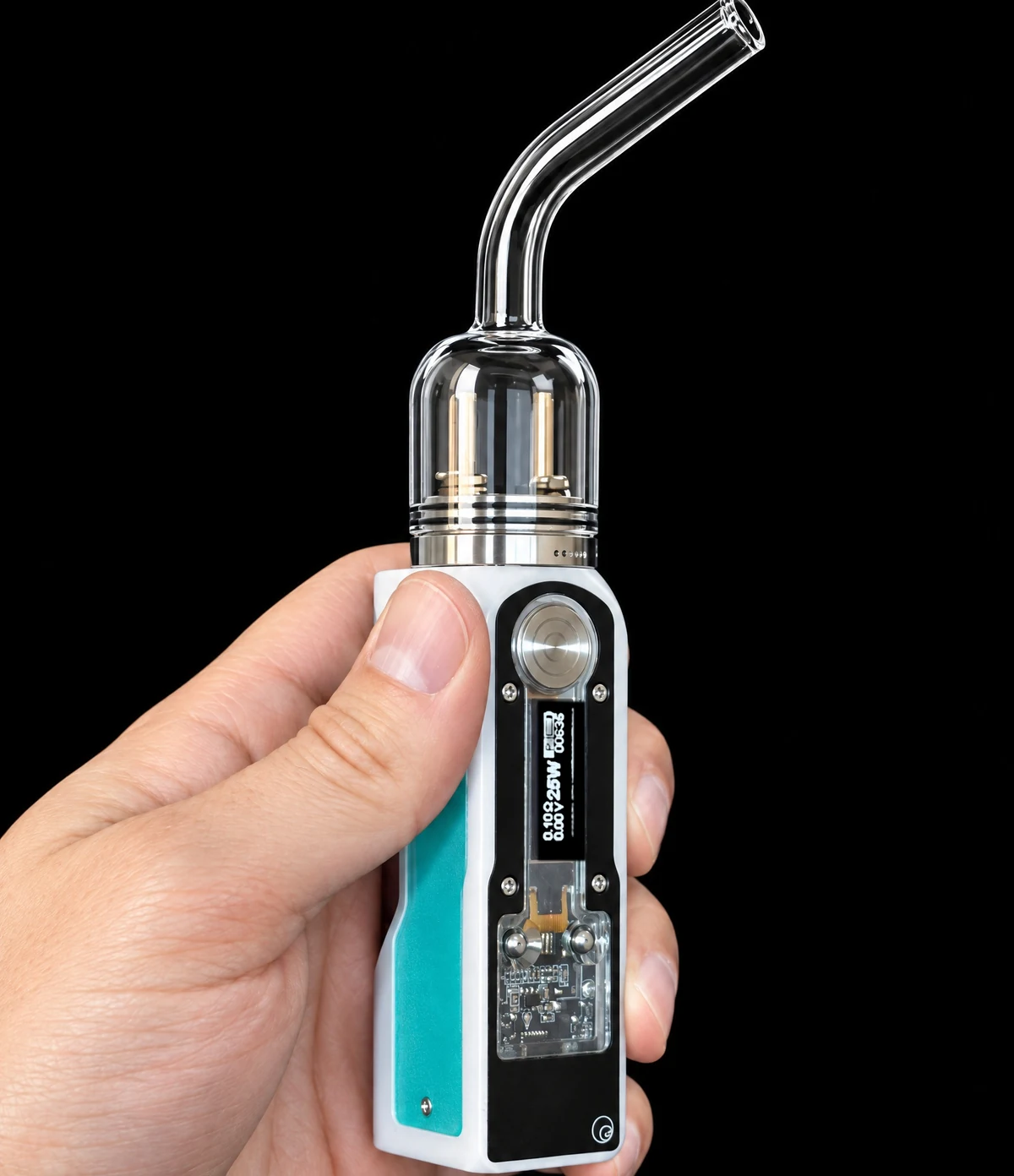

The device with Cylinder glass held in one hand, to show its size (retouched). — FIG. 04In handShown with Cylinder glass

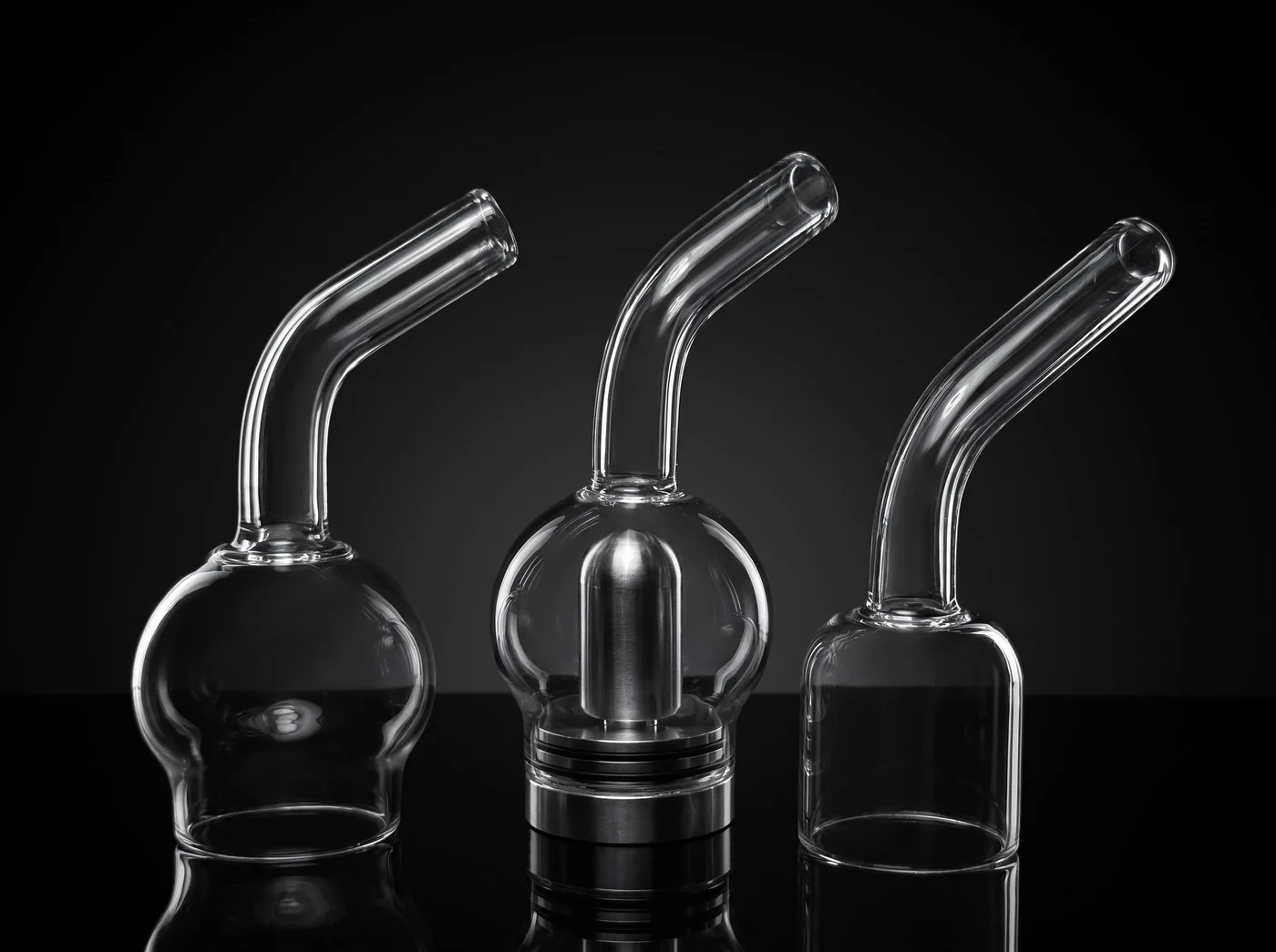

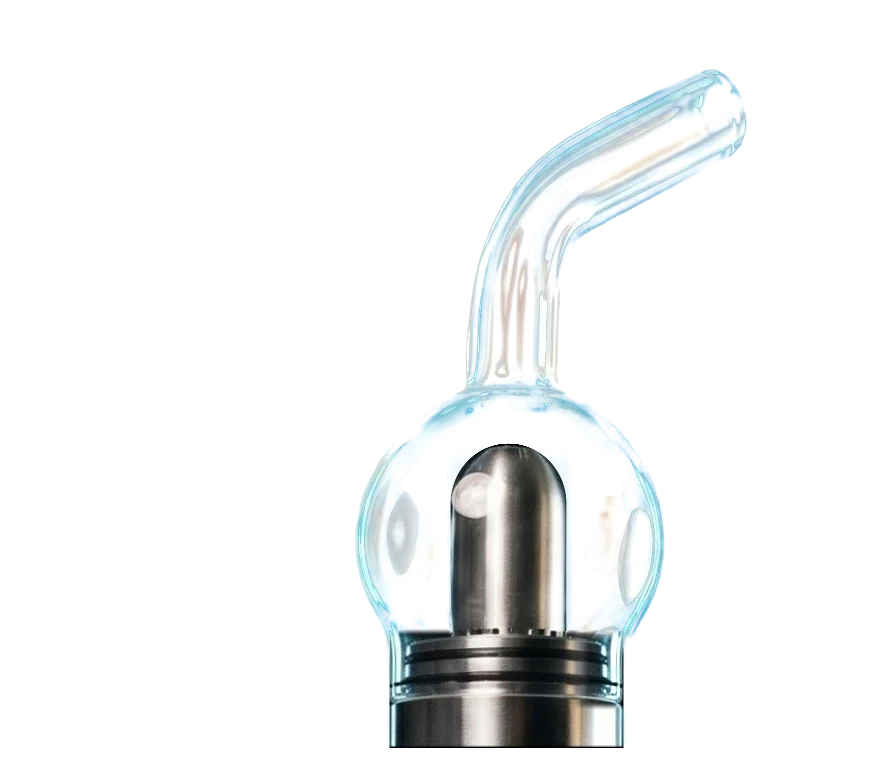

Bulb glass, Bulb glass with the percolator attachment, and Cylinder glass — FIG. 05Removable glassHand-blown borosilicate

Swap the glass. Replace the screen. Clean it all.

Three glass setups on one RDA. The screen and the glass come off by hand.

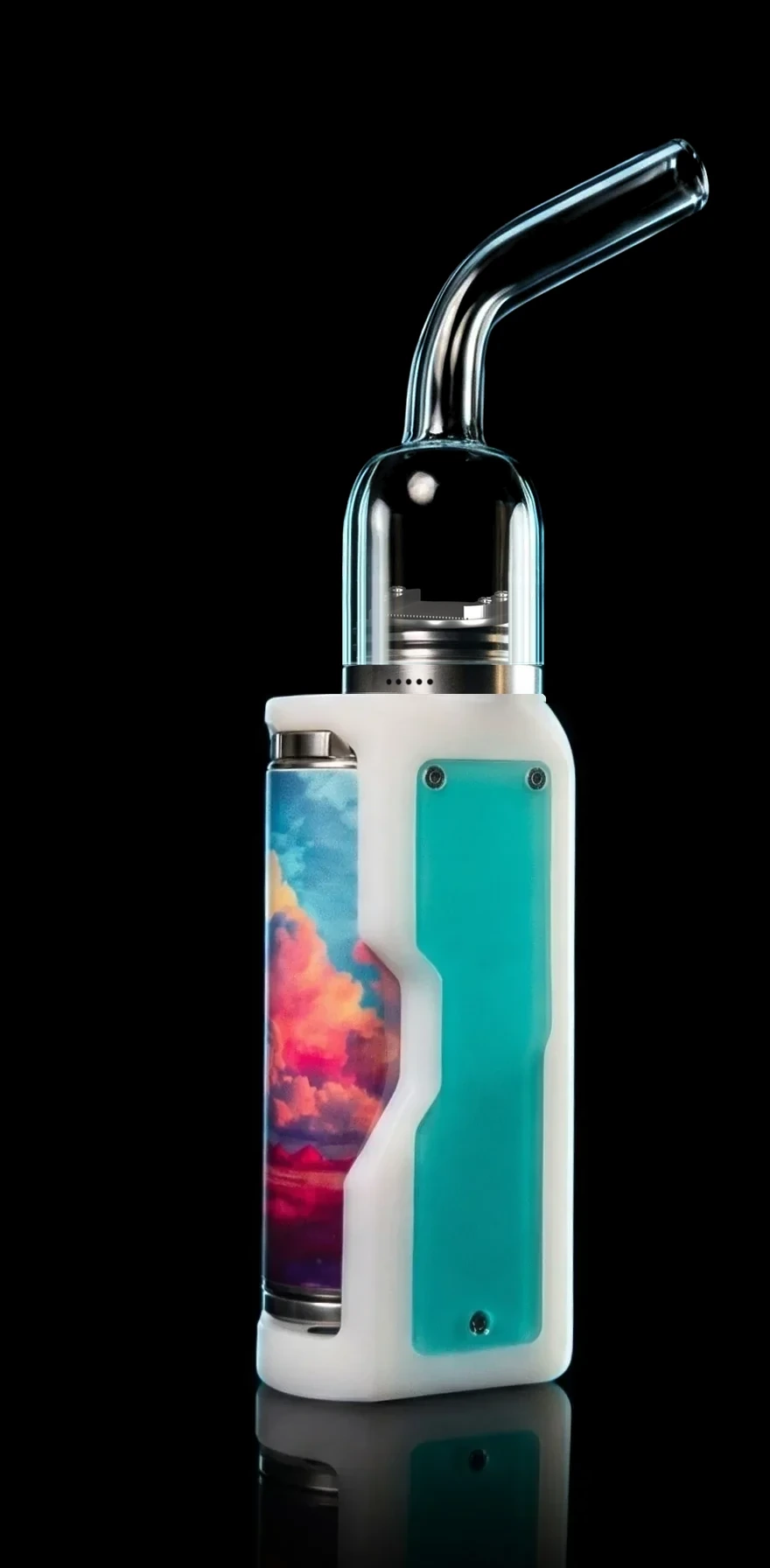

Lucidus with the Cylinder glass piece fitted

Configuration 1 of 3

Short, straight vapor path.

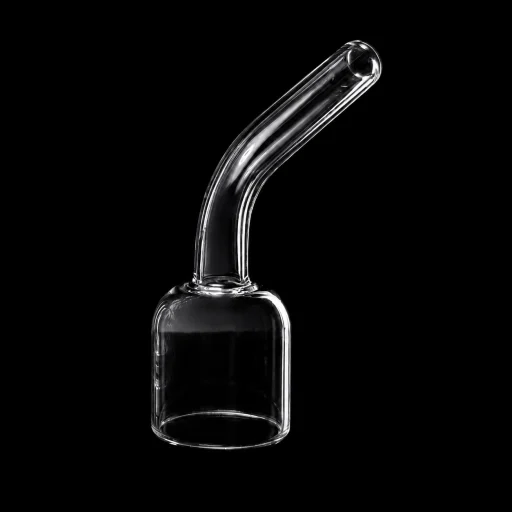

A straight-sided chamber keeps the vapor path short and direct. The Cylinder glass is our recommended starting configuration.

The chamber and the mouthpiece are one piece of glass. No separate drip tip. After the screen, vapor touches only glass.

Chamber: Straight-sided
Percolator: Not fitted

Screens

Two widths, included.

Two widths, two airflow and resistance options. Every screen is laser-cut, so the edges are clean. Ten of each. The narrow one is installed. Swap a screen when it wears.

NarrowInstalled

Full-widthMore mesh

Fig. 08The two screens, drawn to scaleSS316L · 200 mesh · laser-cut · weave enlarged to show it

Compare the two screens

Airflow

Adjustable airflow.

The RDA has adjustable bottom airflow. The Top Airflow Vent adds top airflow, for people who prefer it. It is designed for a smoother draw. You can use both together, for example one hole open on top and one on the bottom.

**Fig. 09**The vent seats on the RDAIllustration · parts redrawn at one angle

Kit 06 in the parts list

Cleaning

The glass lifts off.

This is not a sealed device. The core parts separate for inspection, cleaning, and replacement.

Finish

Make it yours.

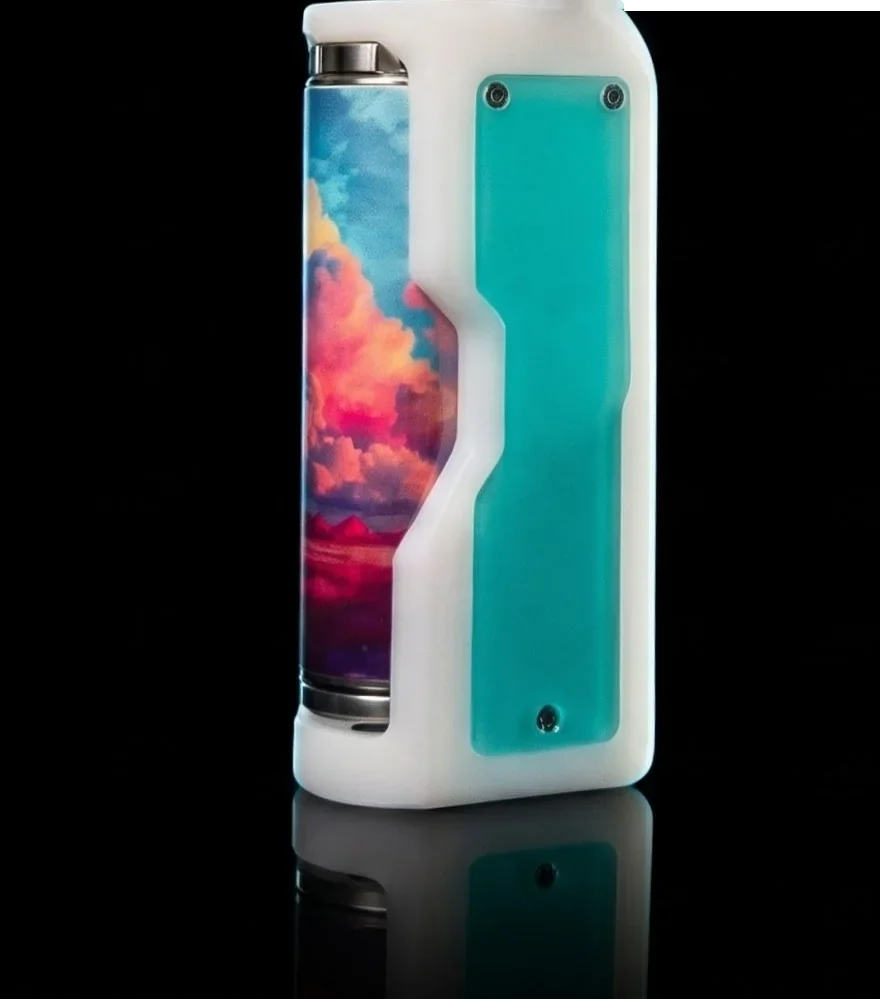

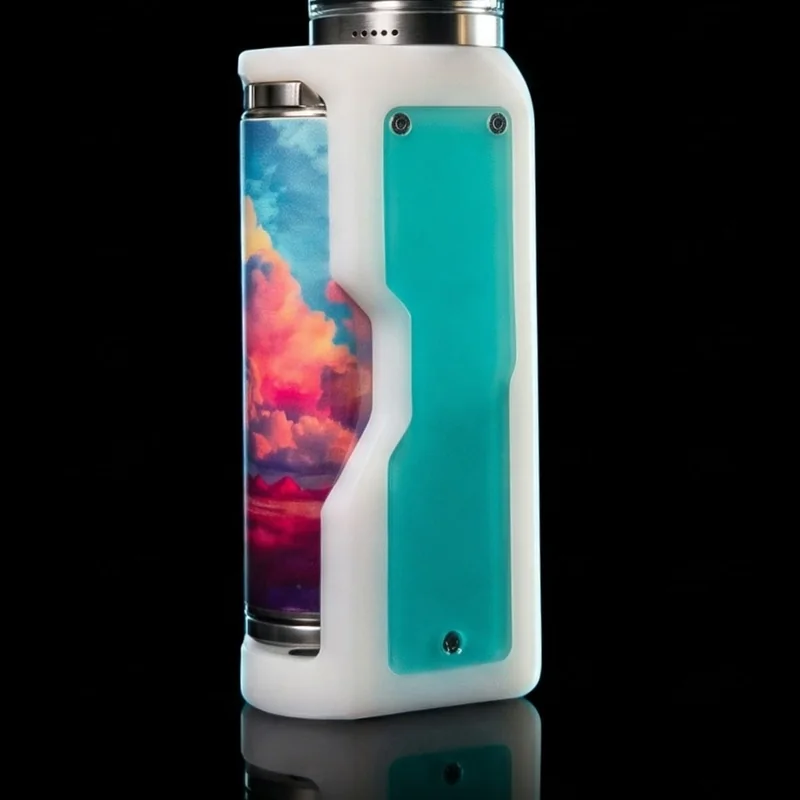

The clear side panels come off. Put the stickers under them. Apply a battery decal over the factory wrap.

Kits 08 · 09 in the parts list

The tool frames the screen.

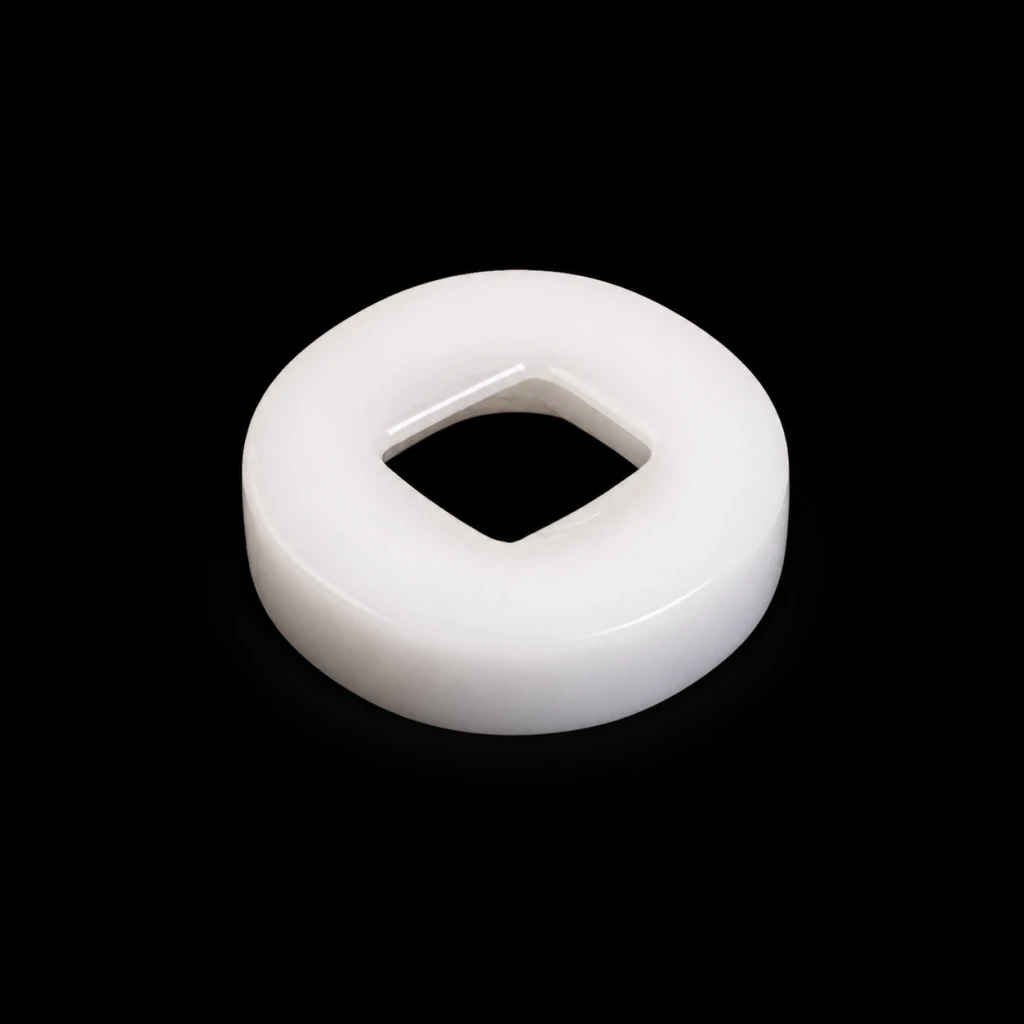

The loading tool sits on the RDA. Its opening lines up with the mesh screen. Material lands on the screen and stays off the screws and the rest of the RDA.

**Fig. 10**The loading tool frames the screenIllustration · parts redrawn at one angle

Kit 10 in the parts list

Specifications

Technical specifications

A compact record of the hardware that ships in the kit.

Recommended range14 to 24 W

RDA: Ø26 mm · 304 stainless steel
Mesh: SS316L · 200 mesh · 0.05 mm wire
Power: Single 18650 · regulated
Interface: OLED · USB-C · three buttons
Body: 81 × 35 × 26.6 mm
Mod weight: 68.6 g

8126.6Front

8135Side

26.635Ø26Plan

Body26.6 × 35 × 81 mm
RDAØ26 mm
Mod weight68.6 g

FIG. 11 · ENVELOPE · BOUNDING SIZE IN MM · NOT THE TRUE OUTLINE

GRID 1 SQUARE = 1 MMGRID 1 SQUARE = 5 MM

Materials: Body: one block of white Delrin · Glass: hand-blown borosilicate · RDA: 304 stainless steel · Screens: SS316L, laser-cut

Narrow · 10 included

11 × 13.9 mm

Leaves open space along both sides for air. Slightly higher resistance. Pre-installed.

Full-width · 10 included

13.9 × 13.9 mm

More mesh area. Lower resistance.

Board modes

One mode does the job.

The mod has several modes. You only need plain Power mode, shown as P. The rest are there if you want them.

Use this one

Power mode · P

Set the watts and fire. The board holds that power steady as the battery runs down. Our settings are written for this mode.

Recommended range 14 to 24 W

P1 · P2

The same watts with a faster heat-up at the start of each puff. P2 heats up fastest. Optional.

Also on the board · you can skip these

VoltageNot needed: Set the output in volts instead of watts.
Temperature controlNot tested with our screens: Holds the heater at a set temperature. Presets for stainless, nickel and titanium wire.
TCRNot tested with our screens: Temperature control for wire that is not in the presets. You enter the coefficient yourself.
BypassNot recommended: No regulation. Power follows the battery charge, so it drops as the battery runs down.

Controls and safety cut-offs

Lock: Press fire 5 times to lock or unlock the buttons.
Mode menu: Press fire 3 times, then + or − to change mode. You should never need it if you stay on P.
Screen: Shows watts, resistance, volts, amps, mode, battery and a puff counter. The screen and the fire-button light can be switched off.
Cut-offs: CHECK ATOMIZER, SHORT, OVER 10S (stops firing after ten seconds), LOW BATTERY, and TOO HOT above 84 °C.

FAQ

Common questions.

New to e-mesh

What is e-mesh?

E-mesh uses a flat stainless-steel mesh screen that heats electrically, instead of a wire coil.

What is a mod?

The mod is the battery box. It holds the 18650 battery and supplies regulated power.

What is an RDA?

The RDA is the deck that holds the mesh screen. Air comes in through holes at its base, and the glass sits on top of it.

Buying

Is a battery included?

US kits include one battery. International kits ship without one.

Setup and screens

How much assembly is required?

Some assembly is needed. The mesh screen arrives installed.

Why are two screen widths included?

The two widths give different airflow and resistance. Ten of each are included, and the narrower screen arrives installed.
